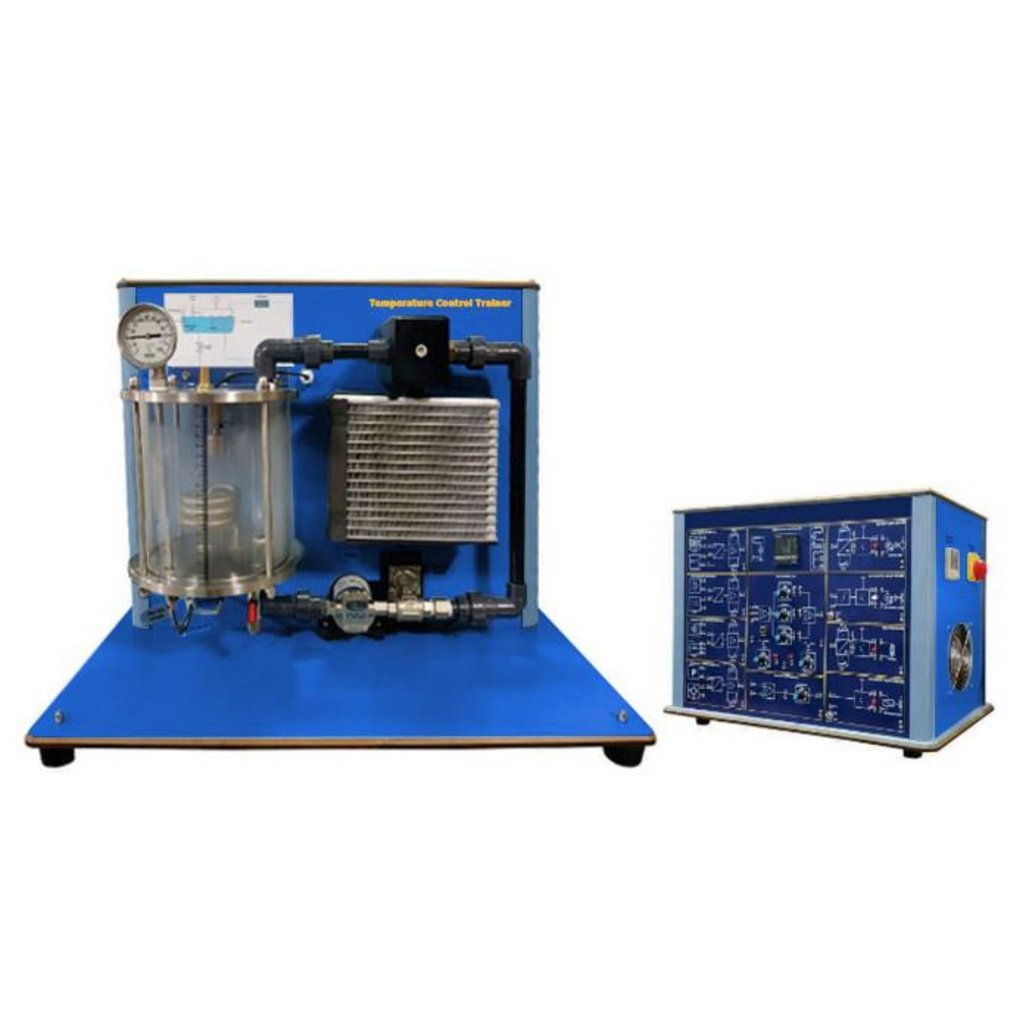

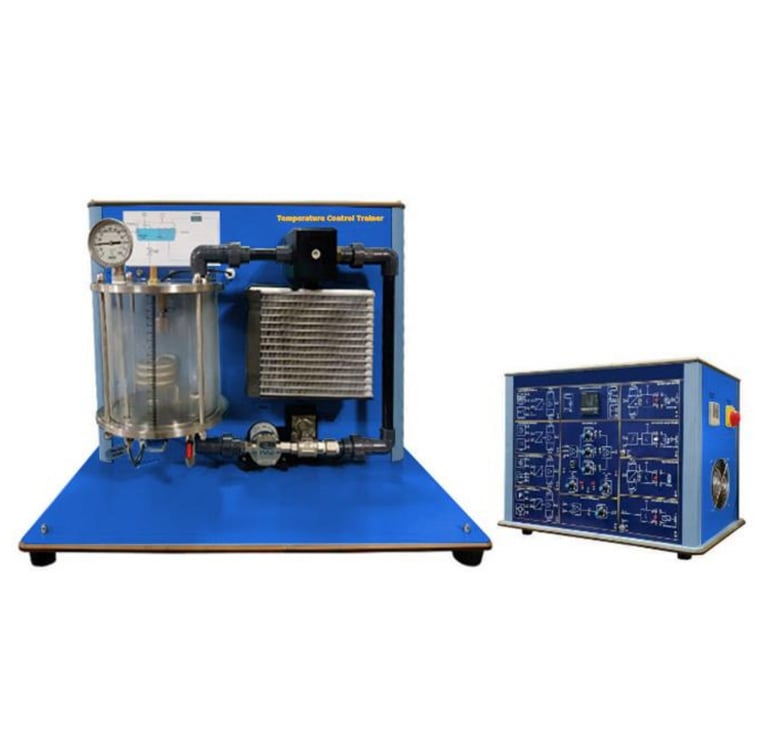

Temperature Control Trainer
Experiments:
Study of the Temperature Sensor
Study of the Characteristics of the Pump and Heater
Study of the Characteristics of Cooling Temperature Controller
Study of the characteristics of the static process and of the time constants
ON-OFF P PI PD and PID Closed Loop Control of the Temperature
Temperature Control Trainer contains an educational board with a vessel and a set of sensors and actuators for temperature and flow A control module containing the interface circuits for the sensors and the actuators and the ON/OFF proportional integral and derivative control circuits (PID)
