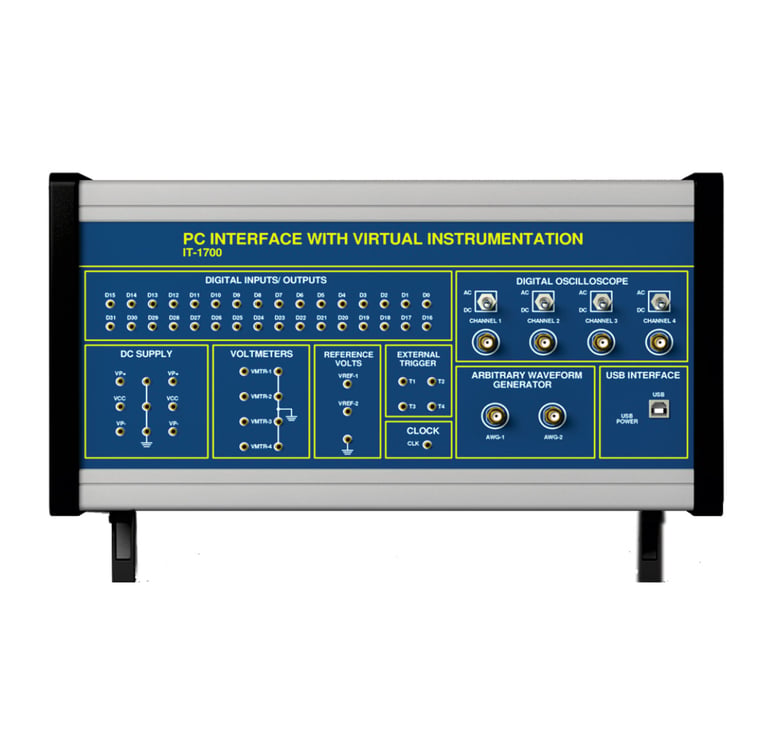

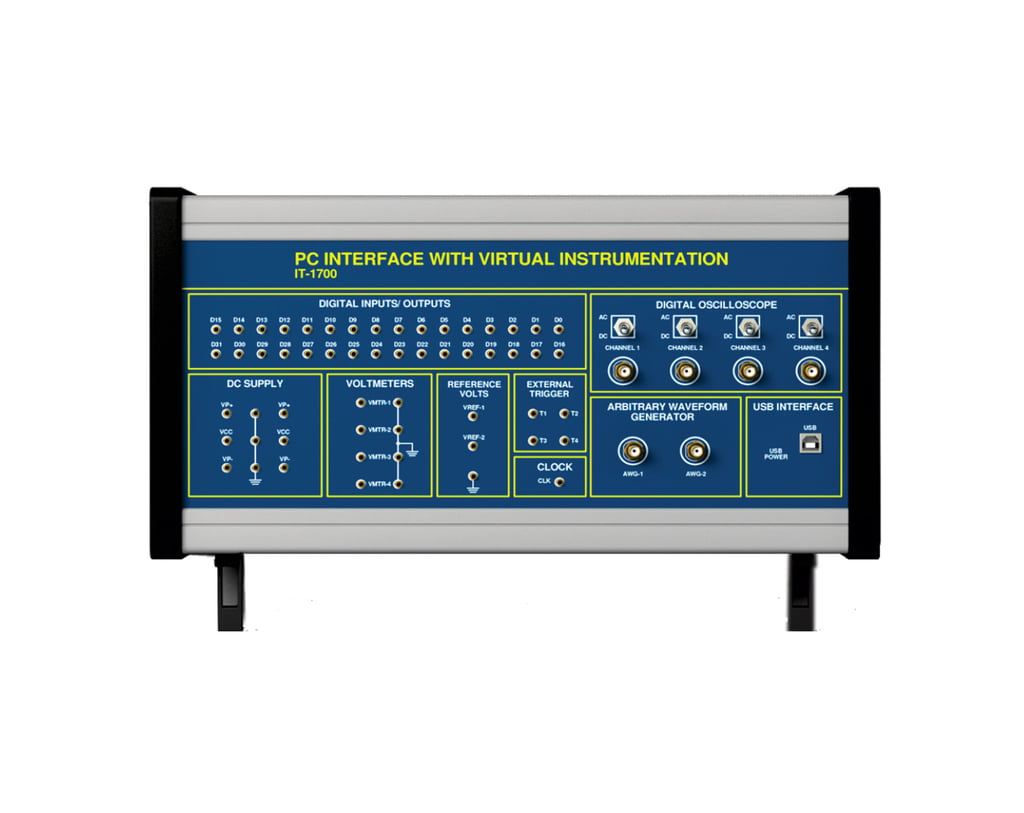

PC Interface with Virtual Instrumentation
Technical Features:
Oscilloscope4 channels, 40MSa/sec
70MHz analog input stage bandwidth
9M Ohm /10pF input impedance
+/-20V input range, AC/DC coupling
10 bits Analog to Digital converter
0.8mV to 40mV/LSB resolution
Input protection up to +-200V
Power Supplies and Voltmeters
Voltage/Current supplies of up to +/-9V@1.5A
Fixed 5V/3.3V supply with up to 2 A
4 voltmeters with +/-10V inputs
Input impedance 1.2M Ohm
Voltmeter input protection up to +/-200V
Two reference voltages with +/-10V
Static I/O
PC-based virtual I/O devices including push buttons, LEDs,
Switches, Seven Segments displays, Sliders & progress bars
Customized visualization
Arbitrary Waveform Generator
2 channels, 40MSa/sec
4 MHz bandwidth
10V amplitude with +/-10 V offset
Open loop impedance 35 Ohm
14 bits Digital to Analog converter
Standard and user defined waveforms
2KSa buffer depth for carrier and up to 32KSa buffer depth for the modulator signal
AM/FM modulation with frequencies of up to 4MHz
Swept and damped waveforms
Import data options
Software Features
Analog-In channels shared with Oscilloscope.
Up to 16KSa buffer depth
Advanced triggering(edge, pulse, transition types and hysteresis, hold-off parameters)
Channels filtering: average, decimate, min/max
FFT, XY, and Histogram functions
Recording and audio functions
Advanced data measurements for each channel and global measurements
Export data and waveform options
32 digital pins (shared with Digital Signal Generator and Static I/O) 100MSa/sec
Internal/External clock
Up to 16KSa per pin buffer depth
Trigger options
Save signals values option
Tabular data visualization
Auto scale and plot functions for each supply(voltage, current and power) and voltmeter
Save data and waveform options
It includes 4-channel PC oscilloscope, waveform generators, power supplies, voltmeters, reference voltage generators, and thirty-two digital I/O signals that can be configured as a logic analyzer, pattern generator, or any one of several static digital I/O devices. All of these instruments can be accessed using BNC, connectors and 2mm gold plated sockets.
The IT-1700 is powered by PC-based WaveForms™ software that makes it easy to acquire, store, analyze, produce and reuse analog and digital signals. WaveForms™ runs well on virtually any notebook PC, including low-cost Netbooks. A high-speed USB2 connection ensures all PC based instruments respond in near real-time. WaveForms™ data files are stored using standard formats, making it easy to share data between instruments, and to export data to word processors or graphics editors.
