Ball & Beam Control Trainer
Experiments:
Ball & Beam Features & Benefits
Ball & Beam Functional Components
Mechanical Model of Ball & Beam
Modeling The Ball And Beam Experiment In Simulink
Electrical Model
Control Model
Open-Loop Model Of Ball & Beam System
Ball & Beam Control Using PID
Root Locus Method
Frequency Response Method

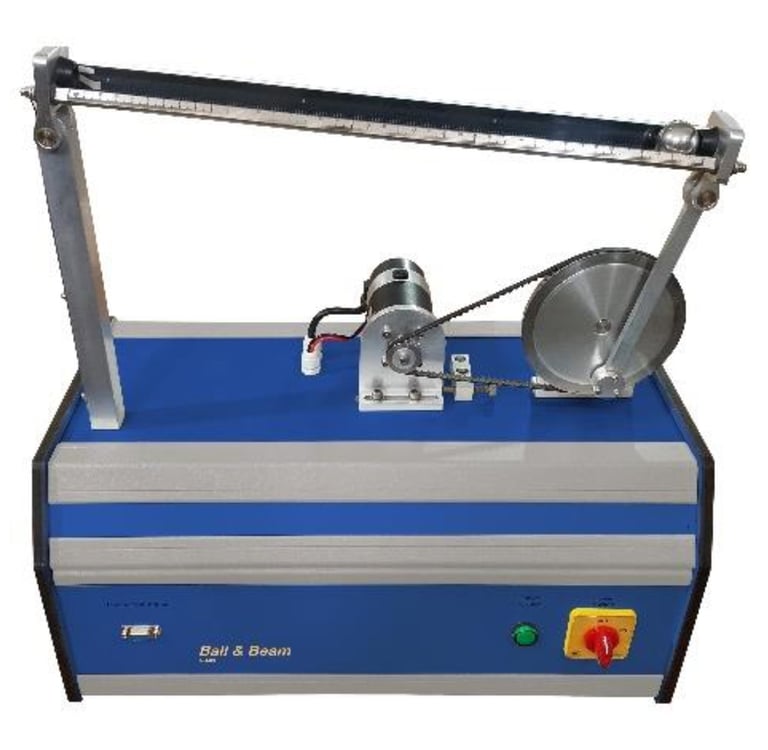

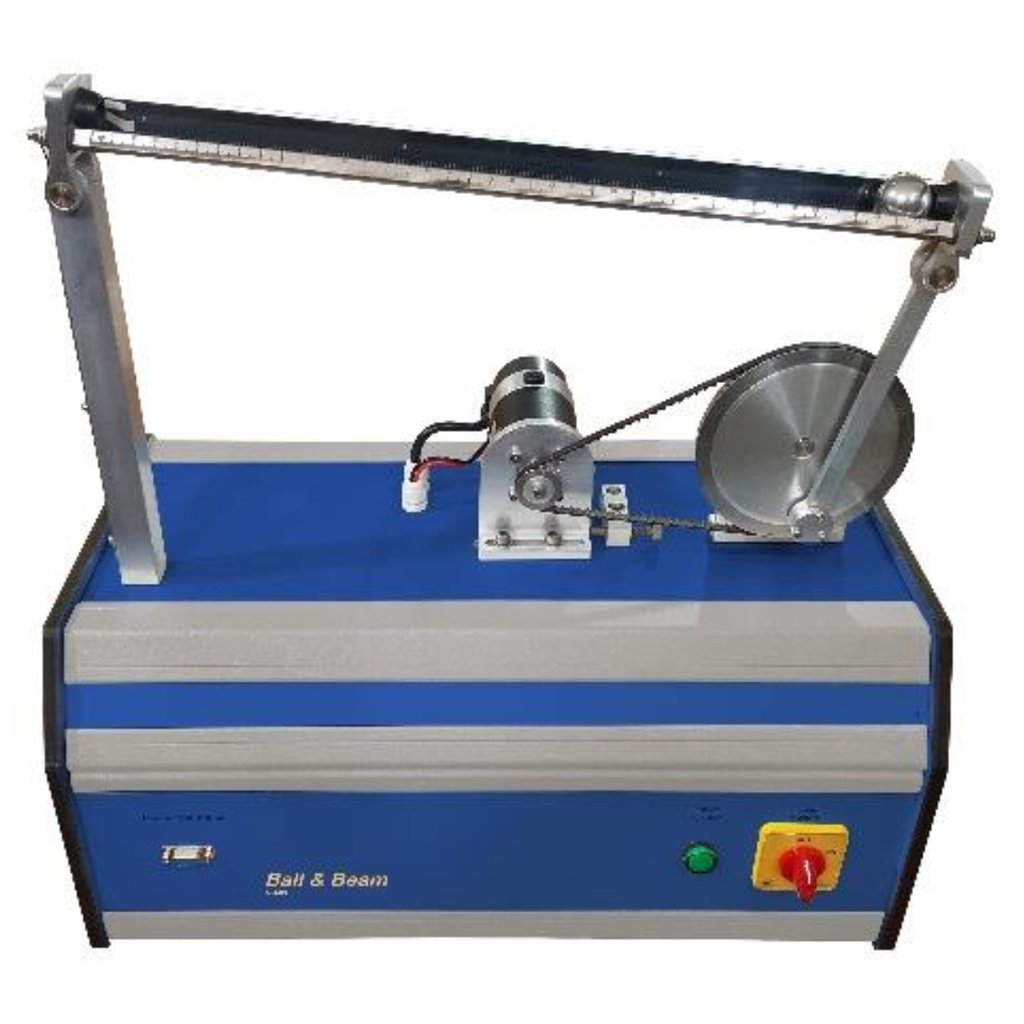

Ball & Beam control system are specially designed for courses in automatic control principle modern control engineering and electrical motor control It is able to control the position of a stainless-steel ball on the track by adjusting the rotating angle of a beam The system consists of two parts namely the Ball & Beam body and the control system
